This is a guide to remove the centre console.


So you will need:

Ratchet and extension.
13mm deep socket.
Small flat head screwdriver.
Torx T15.
Plastic prizing tool.

________________________________________________________________________________________________

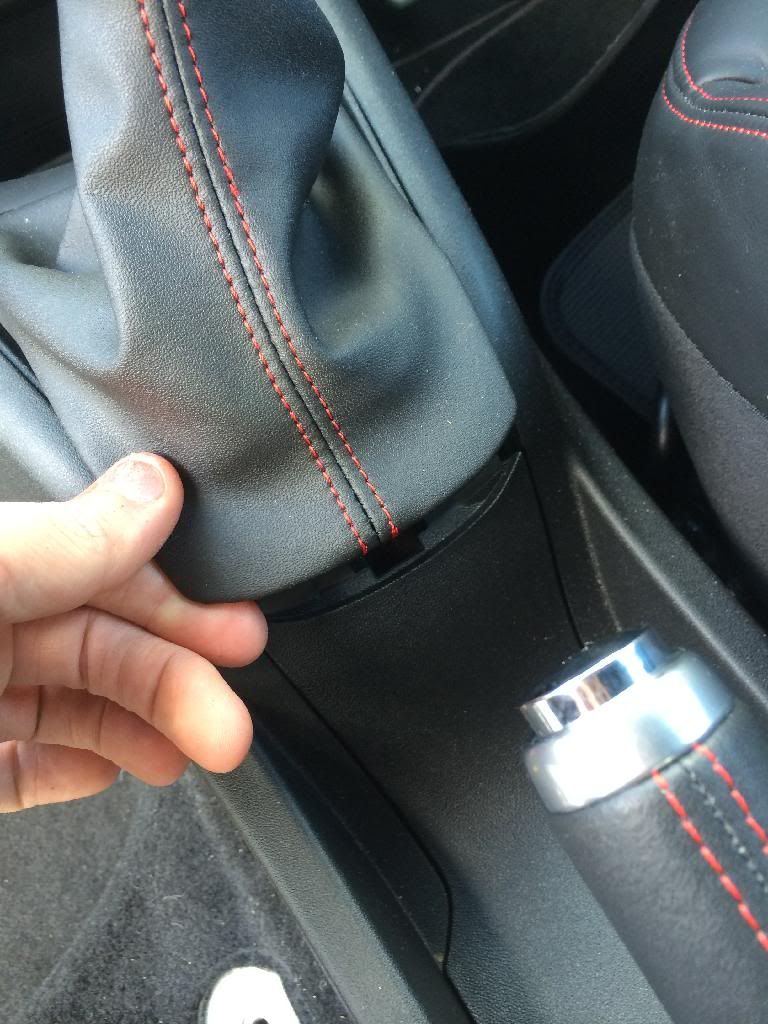

1. Pull up the gear stick surround.

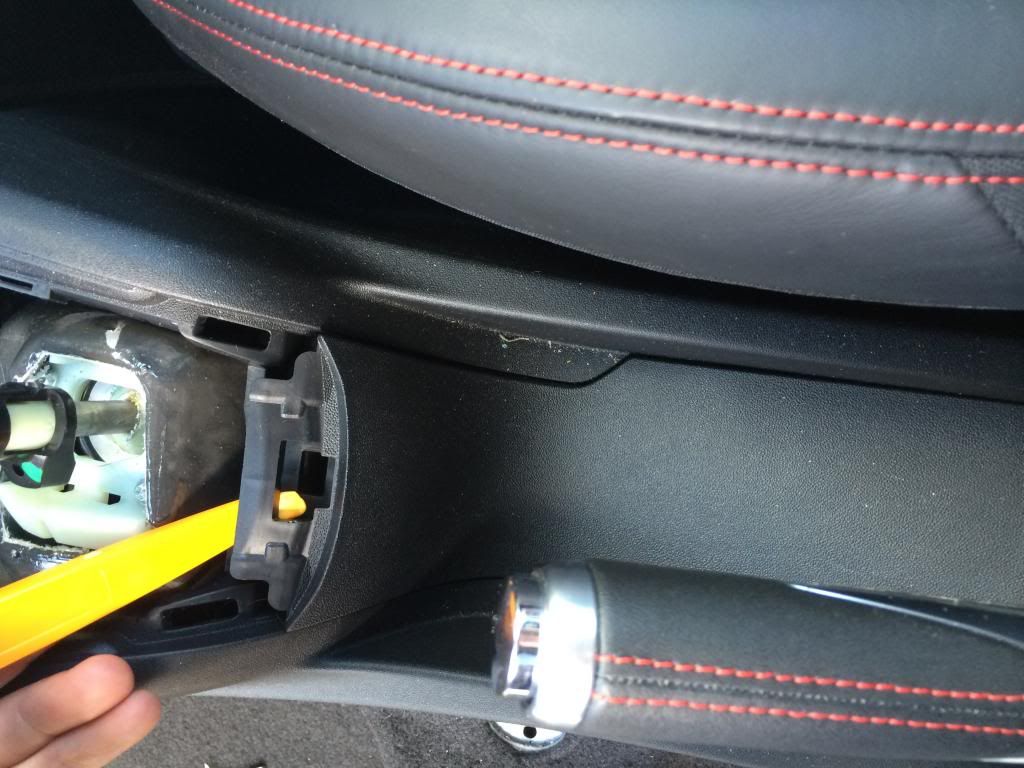

2. Pull up from here and remove.

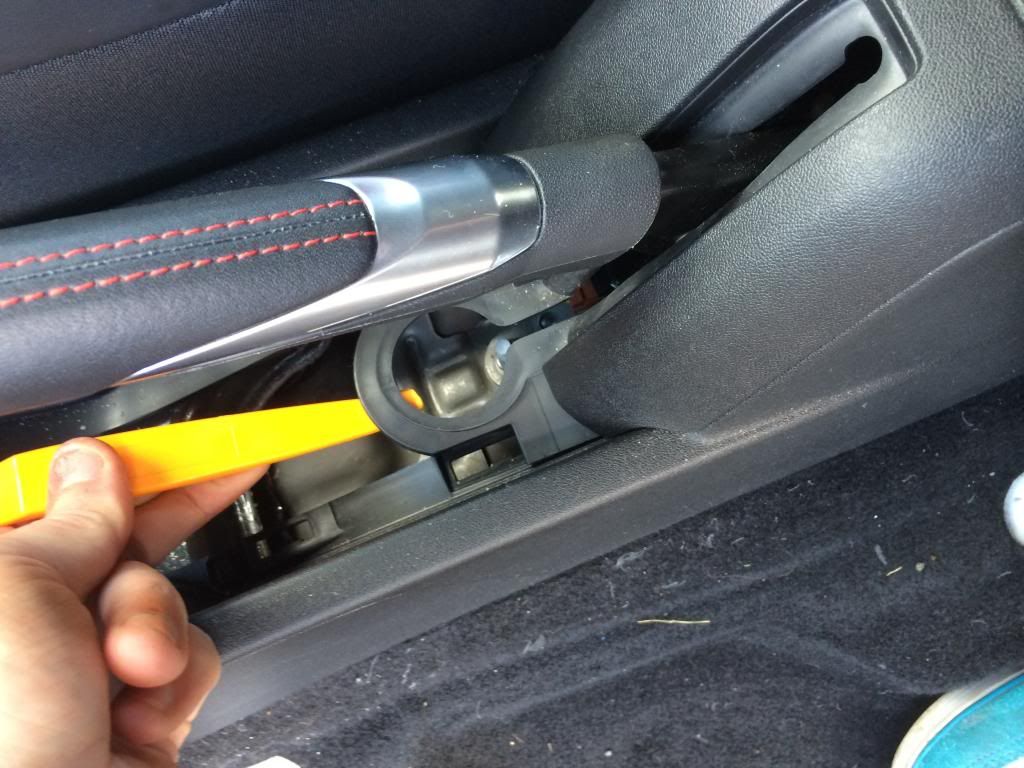

3. Again pull from here and slide off hand brake.



4. Remove the cup holder then the last penal.



5. Use the flat head to remove the bottom of the cup holder.

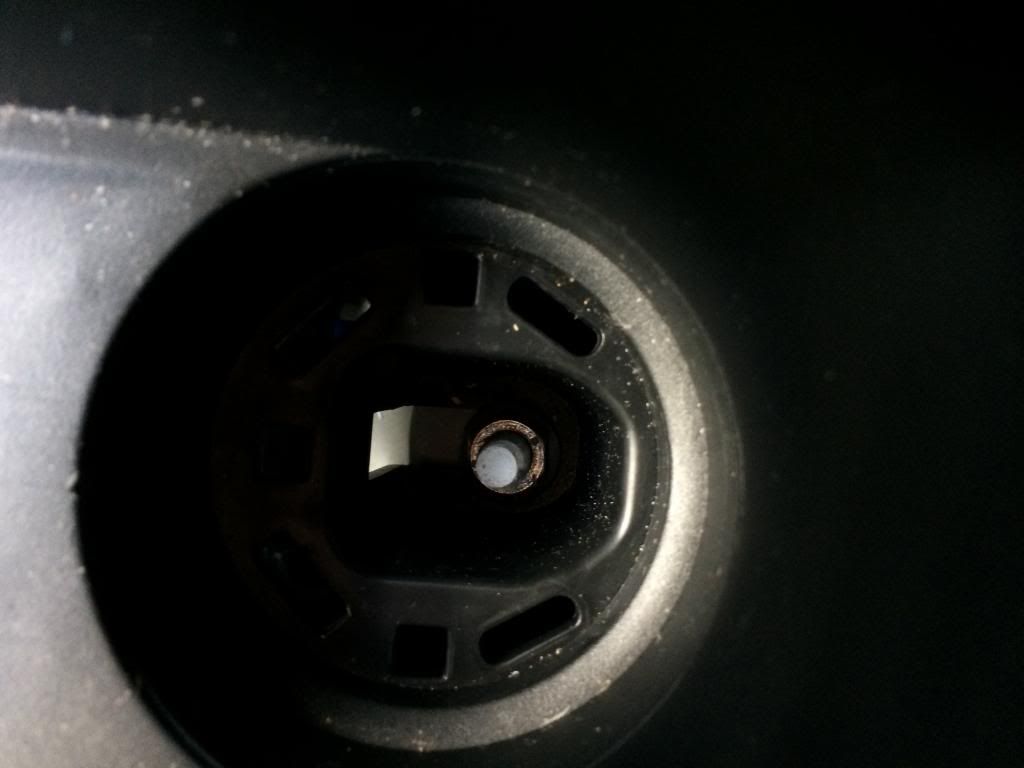

6. Now use the 13mm deep socket and ratchet to remove nut.

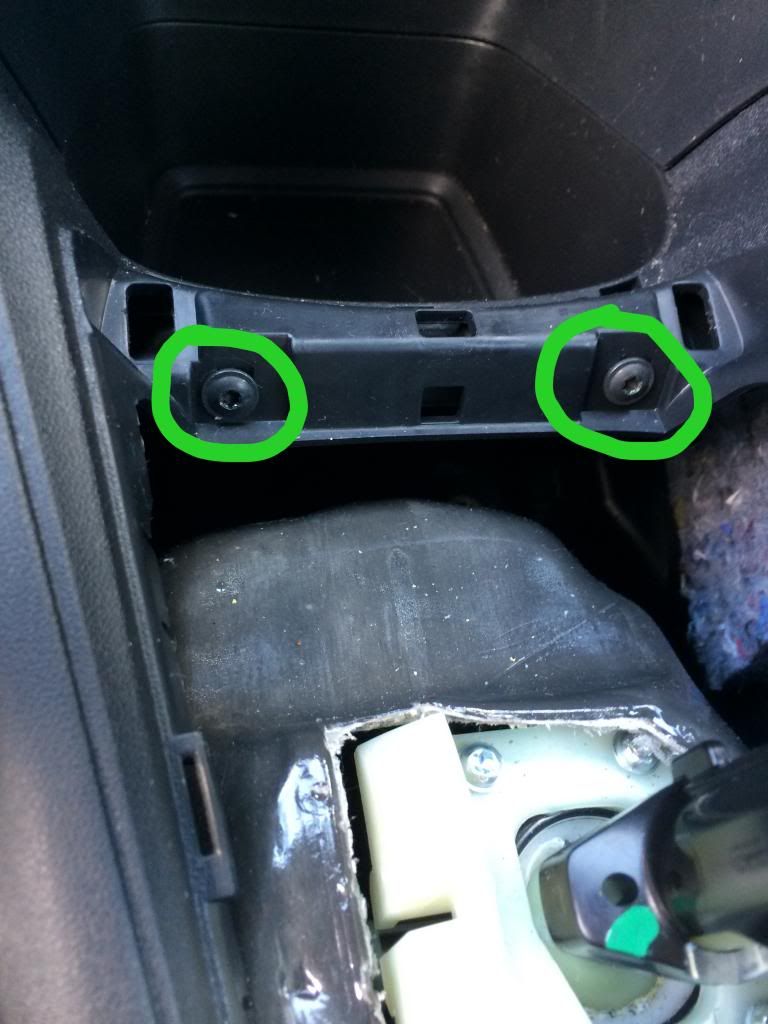

7. Remove these two screws. T15

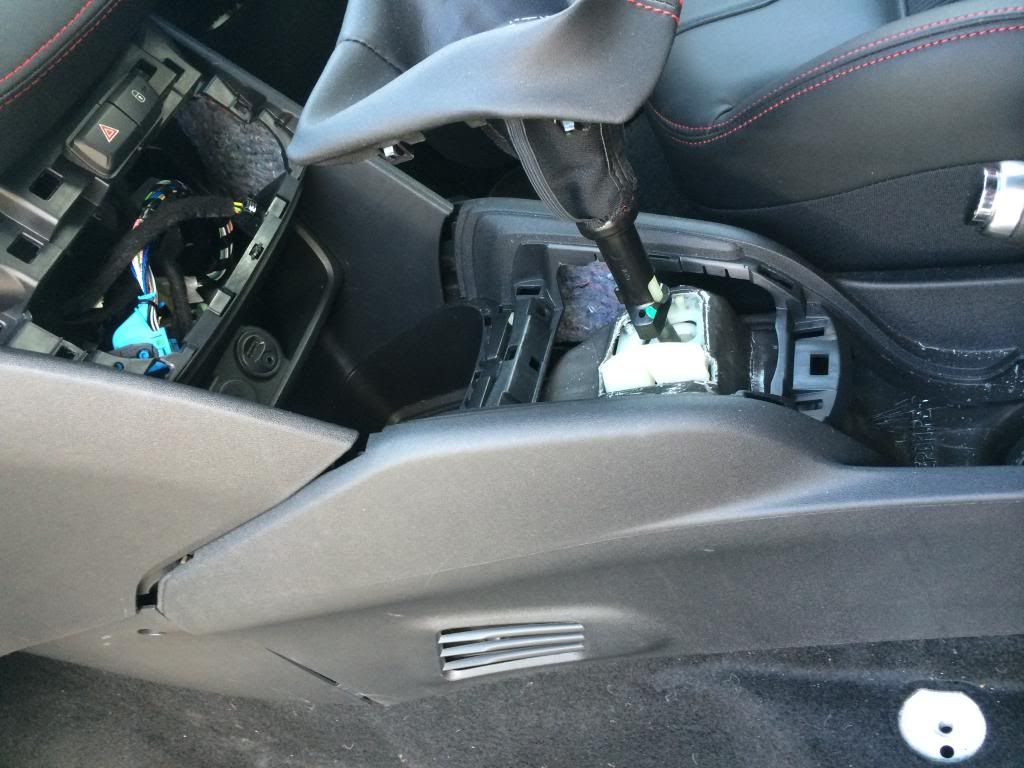

8. Slide backwards and remove.




To replace do in reverse

________________________________________________________________________________________________

I hold no responsibility for you damaging your car. This is how I did it and no damage accrued whilst I was doing it.
